Light Weight Common Mode Power Line Choke Reliable ISO 9001 Certification

Low Loss Toroidal Common Mode Choke /Toroidal Core Power Inductor/Magnetic Inductors

Features:
1. Separated windings for minimum interwinding capacitance
2. Single layer windings for highest common mode impedance over the widest frequency range
3. Suitable for 50Hz to 500 KHz
4. Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
5. All materials used are UL94-VO recognized
6. Operating temperature: -55ºC to +105ºC
7. Available in either vertical or horizontal mount
8. Available in vertical header mount for ease in PCB assembly
9. Easy FR-4 board mounting Good vibration resistance

Application:
Low Frequency AC Reactor, Solar Power System, Power Conditioning System,Wind Power System, Automatic Drive Machine, Induction Heater, Welding Machine, Paper Industries, RFI Suppression Choke, DC/DC converters, IP and OP devices.

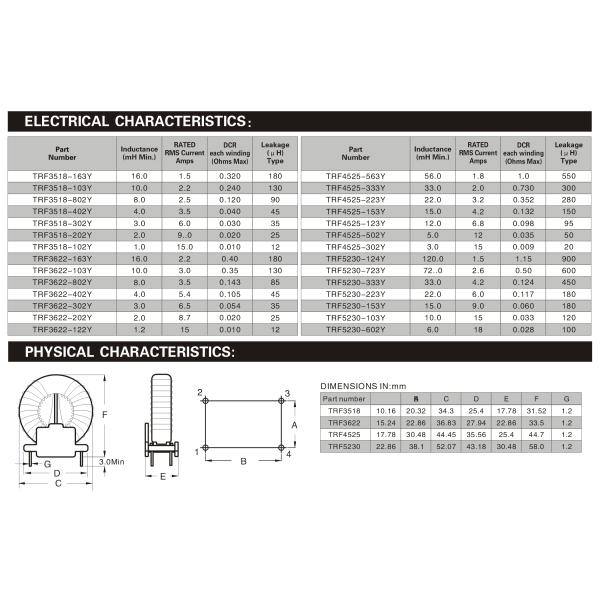

Technical information:

1. Inductance tolerance in +50% -30%
2. Max operating voltage:250V at 40℃
3. IDC Max: rating AC/DC current A @40℃
4. Hi-Pot 2500Vac winding to winding 3S.
5. Inductance Testing: 10KHz 0.1V HP4284A
6. RDC:QuadTech 1880 Milliohmmeter
7. Surge current Max 10ms: 20X IDC
8. Operating temperature: -40℃ to +105℃
9. Storage Temperature: -40℃ to +105℃

Note: Product specifications can be customized.
