Name: 8 Windings SMD Data Line EMI Filter Common Mode Choke
Brand: Shinhom
Price: 1 USD

Brand Name : Shinhom

Model Number : SDLF8005

Certification : RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Core : Toroidal Ferrite core

Winding : 8 windings

Case : Ceramic case

Rated current : 0.5A

Specification : RoHS/UL

Type : EMI filter

Contact Now

Common mode inductor , SMD choke coil, 8 windings SMD Data Line EMI Filter with Ceramic case

FEATURES:

Inductance: 5.0uH Min@1.0MHz,0.1V
RDC: 200mΩ Max
Rated current: 500mA Max
Operating temperature: -40℃ to +85℃
Storage temperature: -40℃ to +85℃
Excellent electrical isolation (300 Vrms)
Terminations RoHS compliant tin-silver-copper over silver-platinum.
Available in 8-line versions
Exceptional common mode noise attenuation from 15 MHz to 300 MHz; passes signal line data below 300 MHz with minimal attenuation

PACKAGING:

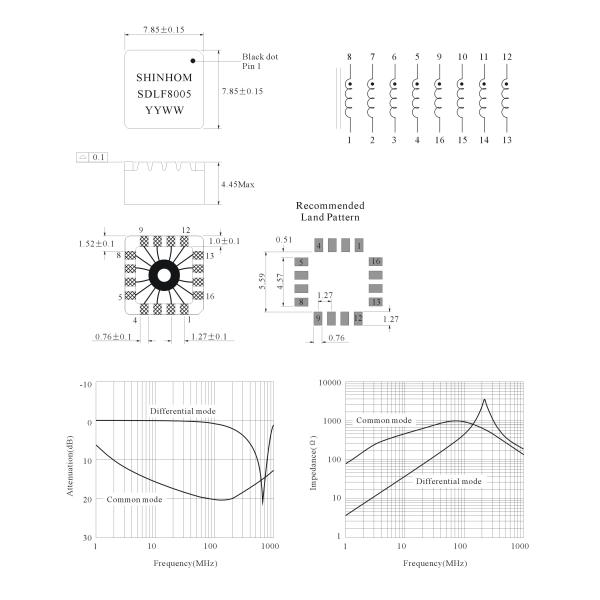

8 Windings SMD Data Line EMI Filter Common Mode Choke

Note: Product specifications can be customized.
